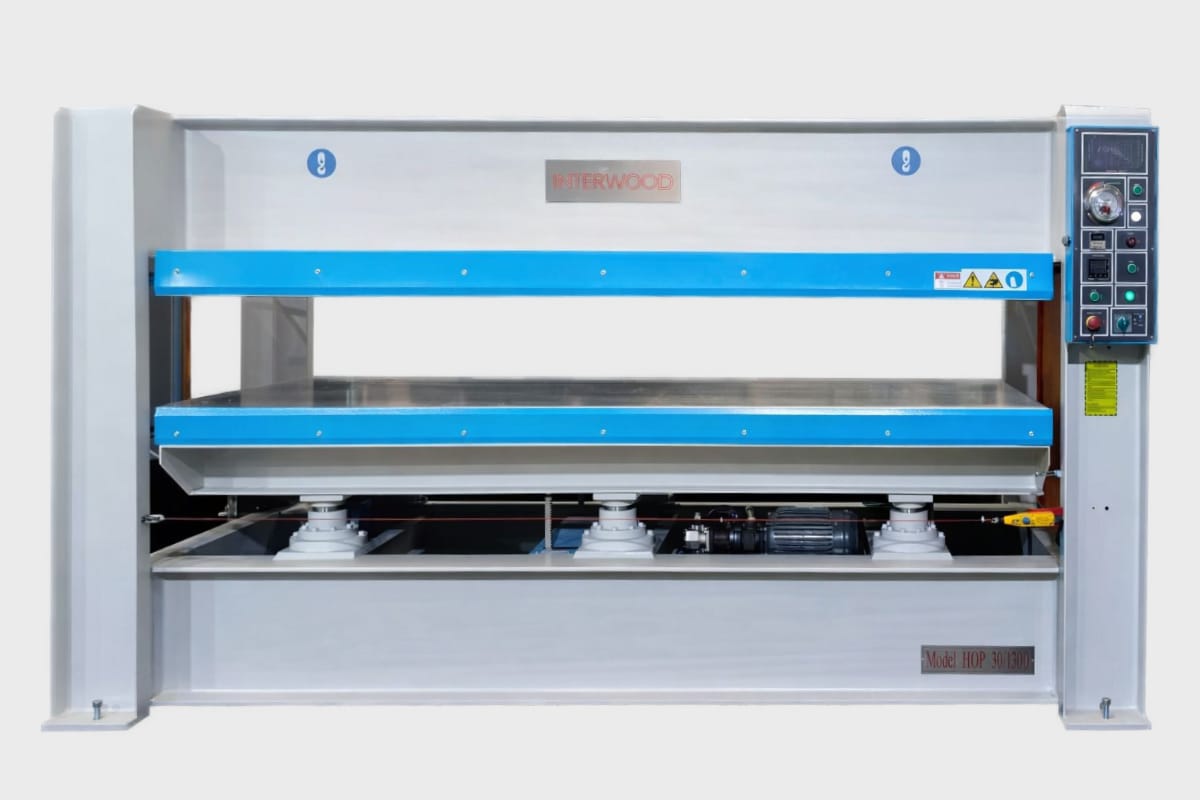

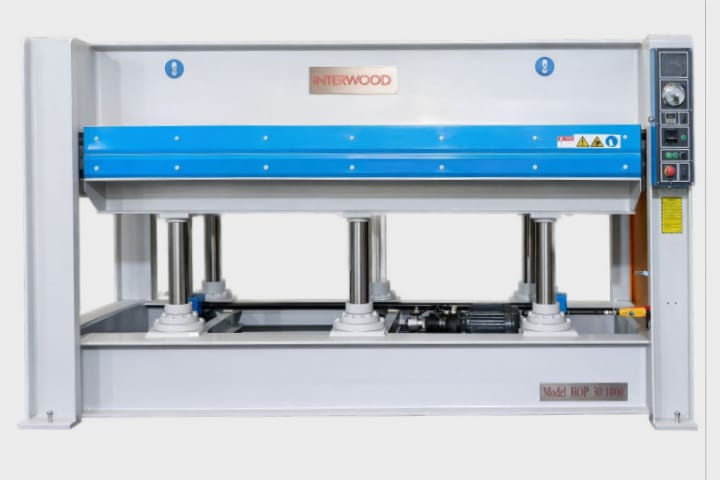

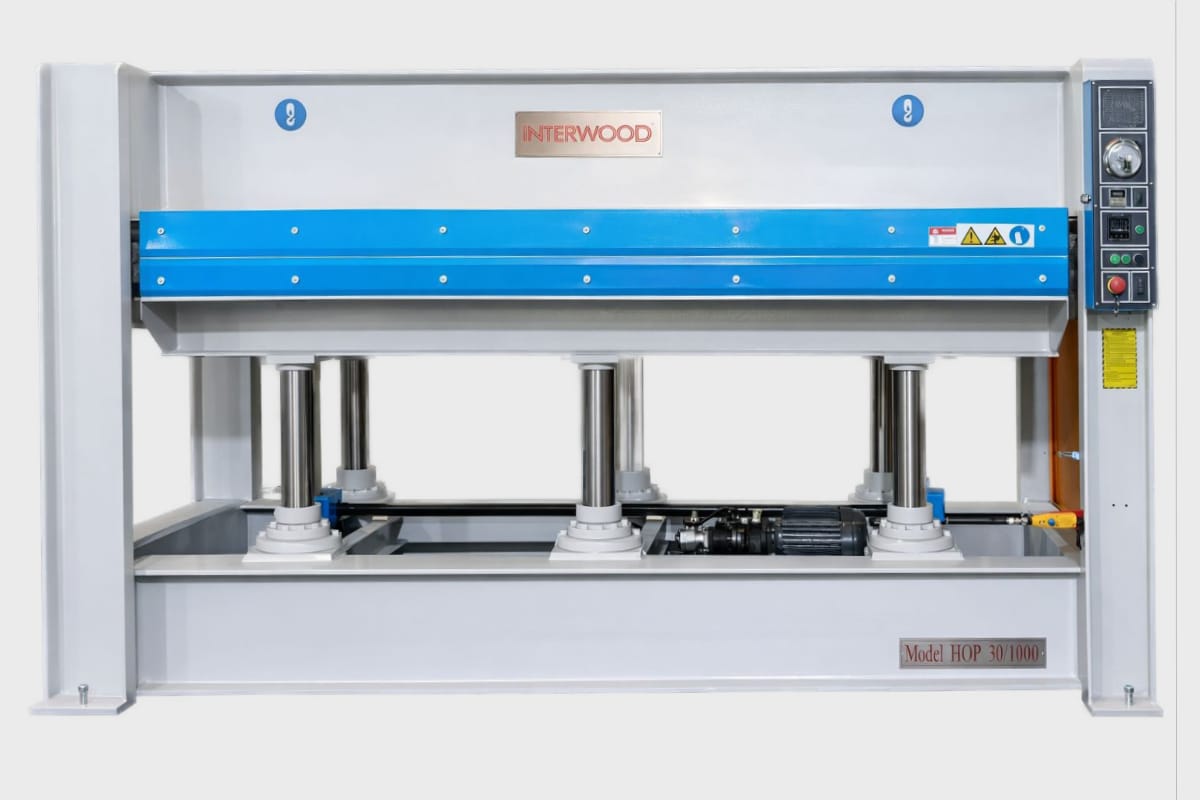

Model HOP/E single daylight hot press
1?working table size 3000 x1300mm
2?platen size and quantity 3000 x 1300 x 42mm x 2 off solid steel
3?working pressure 100T
4?cylinder diameter and quantity 100mm X 6 off
5?daylight number 1
6?opening 400mm
7?heating power 36KW+1.5kW
8?max temperature 120?
9?installation power 5.5kw
10?upstroke
11?mylar film on platens
12: pull switch and two hand start relays included
Weight about 6000 KGS
