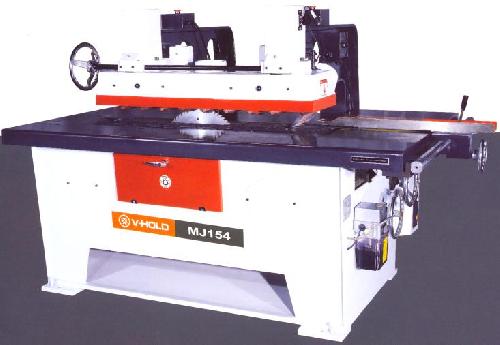

V-HOLD MJ154 Rip Saw

Straight Line Rip Saw fitted with infra-red alignment device

V-HOLD MJ154 Rip Saw Technical Information

• Max Saw Blade Dia.  455mm
• Min Saw Blade Dia.  355mm
• Max Working Thickness 100mm
• Planning Width 660mm
• Feed Speed 11-26 mt/min
• Spindle Speed 3000rpm
• Motor Power 11kw
• Feed Motor Power 1.5kw
• Lubrication Pump Motor Power 20w
• Total Power 12.5kw
• Working Table Size 2000 x 1160mm
• Overall Dimensions 1920 x 1200 x 1400mm
• Weight 1740kg
