INTERWOOD TA4-6200-1300 Cramp

INTERWOOD TA4-6200-1300 Cramp

INTERWOOD TA4-6200-1300 Cramp

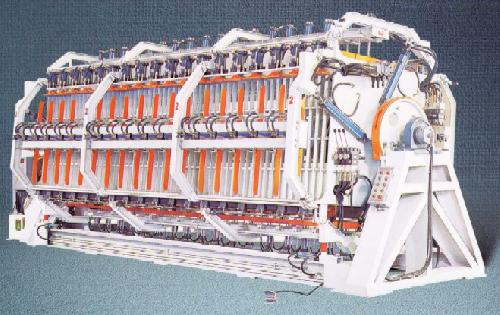

Four sided rotary hydraulic cramp.  This can be made to any specification to suit customers requirements.

Wood cramping is carried out to provide accurate and tight joints within frames.  This can be the laminating of timber, production of doors and other frames along with a host of other applications.  All our presses and frame cramps are of the highest quality.

INTERWOOD TA4-6200-1300 Cramp Technical Information


  • Max Clamping Dimension 6200 x 1300 x 150mm
  • Upper pressure cylinder 16 of 80mm x 80 x 4
  • Mid pressure cylinder 16 of 40mm x 150 x 4
  • Side pressure cylinder 8 of 63mm x 550
  • Max up Pressure 8 Tonnes x 16 pcs x 4
  • Rotating motor power 4kw
  • Oil pump power 7.5kw
  • Overall dimensions 8300 x 2650 x 2950mm
  • Weight 18,000kg

Four sided rotary hydraulic cramp.  This can be made to any specification to suit customers requirements.

Four sided rotary hydraulic cramp.  This can be made to any specification to suit customers requirements.

Max Clamping Dimension 6200 x 1300 x 150mm
Upper pressure cylinder 16 of 80mm x 80 x 4
Mid pressure cylinder 16 of 40mm x 150 x 4
Side pressure cylinder 8 of 63mm x 550
Max up Pressure 8 Tonnes x 16 pcs x 4
Rotating motor power 4kw
Oil pump power 7.5kw
Overall dimensions 8300 x 2650 x 2950mm
Weight 18,000kg

Lease or Finance options are available on request.
