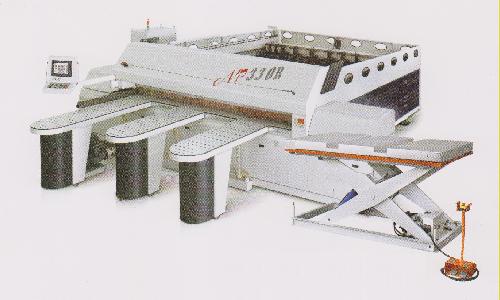

INTERWOOD NP330B Beam Saw

Beam saws are used for cutting sheet materials, the machine keeps the material static and secure with a pressure beam, while the saw moves along on a carriage to cut the sheet materials.

There are two main types of beam saws:

Front Loading is where the material is fed into the machine from the front and is then drawn into the beam saw.
Rear Loading is where the material is automatically loaded from stacks at the rear of the saw.

Beam saws nowadays tend to be computerised and often contain optimisation software to give the best yields from materials.

INTERWOOD NP330B Beam Saw Technical Information

• Max Cutting Length 3280mm
• Max Cutting Thickness 90mm
• Main Saw Diameter 400mm
• Main Saw Spindle 60mm
• Main Saw Rotation 4800rpm
• Scoring Saw Dia 180mm
• Scoring Saw Spindle 30mm
• Scoring Saw Rotation 6500rpm
• Forward Speed of Carriage 9-37mt/min
• Backward Speed of Carriage 67 mt/min
• Main Saw Motor 15kw
• Saw Carriage Motor 1.5kw
• Auto Feed Motor 1.5kw (AC Servomotor)
• Total Power Consumption 20.2kw
• Auto Feed Speed 50mt/min
• Pneumatic Pressure 5-7kg/cm2
• Working Height 960mm
• Weight 6200kg
• Overall Dimensions (LxWxH) 5830x6630x1810mm
