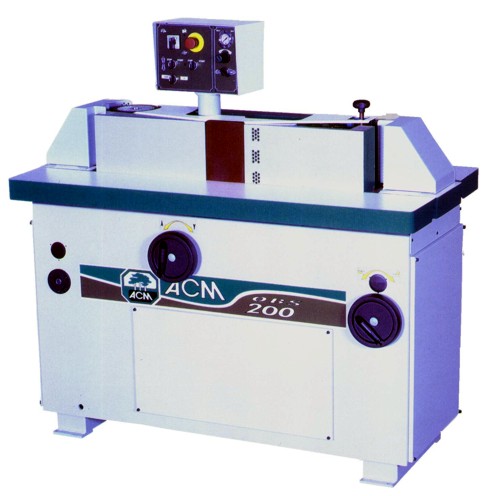

ACM OBS200 Universal Edge Sander

Profile Sander

Universal sanding centre with vertical oscillating sanding belt with CE regulations.

ACM OBS200 Universal Edge Sander Technical Information

• Size of working table 220 x 1440mm
• Size of tilting working surface 220 x 1440mm
• Tilting 0 - 45 degree
• Working surface total width 700mm
• Working table height 980mm
• Sanding belt measurement 2000 x 2200mm
• Belt speed 11.5 - 8mt/sec.
• Drive roller diameter 160 dia.
• Driven roller diameter 80 dia.
• 2 speed belt drive motor power 3.5 - 2.5 hp.
• Oscillation motor power 0.5 hp
• Oscillation stroke 20mm
• Oscillation unit vertical movement 200mm
• Dust extractor unit hood diameter 140 dia.
• Working pressure min.3 - max 6 bar.
• Overall size 1440 x 1100 x 700mm
• Weight 570kg

Including roller extension for wide pieces and table for working with abrasive rollers.
