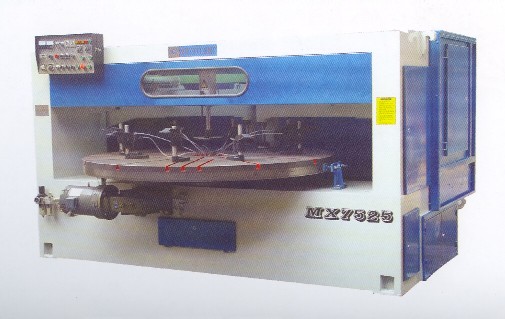

INTERWOOD MX7525 Automatic Copy Shaper NON CE

INTERWOOD MX7525 Automatic Copy Shaper NON CE

INTERWOOD MX7525 Automatic Copy Shaper NON CE

£20,750.00 Make Enquiry

INTERWOOD MX7525 Automatic Copy Shaper NON CE

Heavy duty automatic copy shaper designed for machining big parts.

INTERWOOD MX7525 Automatic Copy Shaper NON CE Technical Information

  • Range of Cutting Diameter 610 - 2500mm
  • Max.  Rectangular Cutting 2:1
  • Max.  Working Thickness 130mm
  • Table Size 1830mm
  • Cutter Spindle Diameter 25.4, 30, 35
  • Guiding Roller Diameter 100
  • Cutter Spindle Speed 9000rpm
  • Table Speed 0.5 - 3rpm
  • Spindle Power 7.5kW x 2
  • Table Driving Power 2.2kW
  • Working Air Pressure 0.6 - 0.8Mpa
  • Overall Dimensions (LxWxH) 3200 x 2500 x 1750mm
  • Net Weight 3640kg

Technical Details

Range of Cutting Diameter 610 - 2500mm
Max.  Rectangular Cutting 2:1
Max.  Working Thickness 130mm
Table Size 1830mm
Cutter Spindle Diameter 25.4, 30, 35
Guiding Roller Diameter 100
Cutter Spindle Speed 9000rpm
Table Speed 0.5 - 3rpm
Spindle Power 7.5kW x 2
Table Driving Power 2.2kW
Working Air Pressure 0.6 - 0.8Mpa
Overall Dimensions (LxWxH) 3200 x 2500 x 1750mm
Net Weight 3640kg

Lease or Finance Options

Lease or Finance options are available on request.
