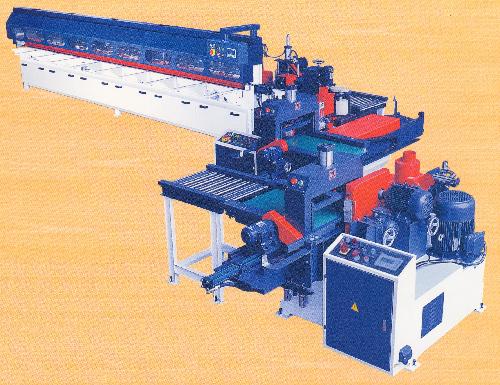

INTERWOOD Automatic Finger Joint Line
£POA Make Enquiry
INTERWOOD Automatic Finger Joint Line
Model ML9860x15
INTERWOOD Automatic Finger Joint Line Technical Information
Comprising:
Automatic Finger Joint Shaper With Glue Function
- Width of worktable 650mm
- Processing Length 120-700mm
- Max Processing Thickness 150mm
- Max Gluing Height 150mm
- Comb Tenon Shaft Speed 7100rpm
- Cutting Saw Speed 2890rpm
- Grooving Saw Speed 2825rpm
- Total Power 20.8kw
Automatic Finger Joint Press
- Binding Length 6200mm (can be divided into 3 sections)
- Binding Width 20-150mm
- Binding Thickness 18-100mm
- Binding speed 5 times/min (Sections 3 times/min)
- Total Power 7.75kw
Comprising:
Automatic Finger Joint Shaper With Glue Function
Technical Specification
Width of worktable 650mm
Processing Length 120-700mm
Max Processing Thickness 150mm
Max Gluing Height 150mm
Comb Tenon Shaft Speed 7100rpm
Cutting Saw Speed 2890rpm
Grooving Saw Speed 2825rpm
Total Power 20.8kw
Automatic Finger Joint Press
Technical Specification
Binding Length 6200mm (can be divided into 3 sections)
Binding Width 20-150mm
Binding Thickness 18-100mm
Binding speed 5 times/min (Sections 3 times/min)
Total Power 7.75kw
Lease or Finance options are available on request.
