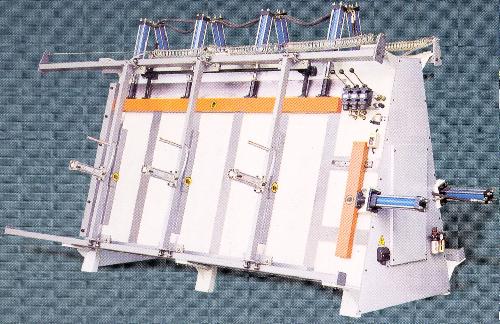

INTERWOOD TA480A-2 Cramp

Double Hydraulic door and window cramp.

INTERWOOD TA480A-2 Cramp Technical Information

• Max frame dimension 1220mm x 2440mm x 2mm
• Upper pressure cylinder 4 of 63mm x 280mm x 2mm
• Up Pressure 4 x 5 tonnes x 2
• Side oil pressure 1 of 63mm x 280mm x 2mm
• Side pressure 1 x 5 tonnes x 2
• Front pressure cylinder 3 of 50mm x 200mm x 2mm
• Front Pressure 0.8mpa x 2
• Overall dimensions 4200mm x 2300mm x 2250mm
• Weight 3700kg
