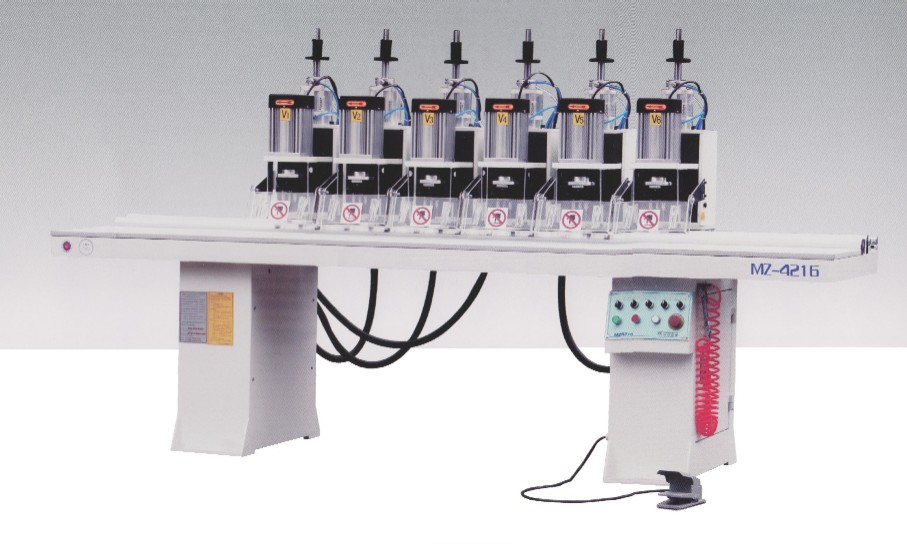

INTERWOOD MZ4216 Hinge Boring Machine

Drilling and boring machines are used for the production of holes to use with dowels to produce furniture, frames and other joinery components.

They can be a single tool or a cluster of drills that will drill either horizontally or vertically.

INTERWOOD MZ4216 Hinge Boring Machine Technical Information

• Max Bore Dia.  35mm
• Max Drilling depth 50mm
• Max Processing Pitch 2600mm
• Min Processing Pitch 300mm
• Drill Spindle Quantity 6 x 3
• Total Motor Power 6.25kw
• Main Spindle Speed 2800rpm
• Air Pressure 0.6-0.8 Mpa
• Overall Dimensions 3000 x 780 x 1700mm
• Weight 660kg
