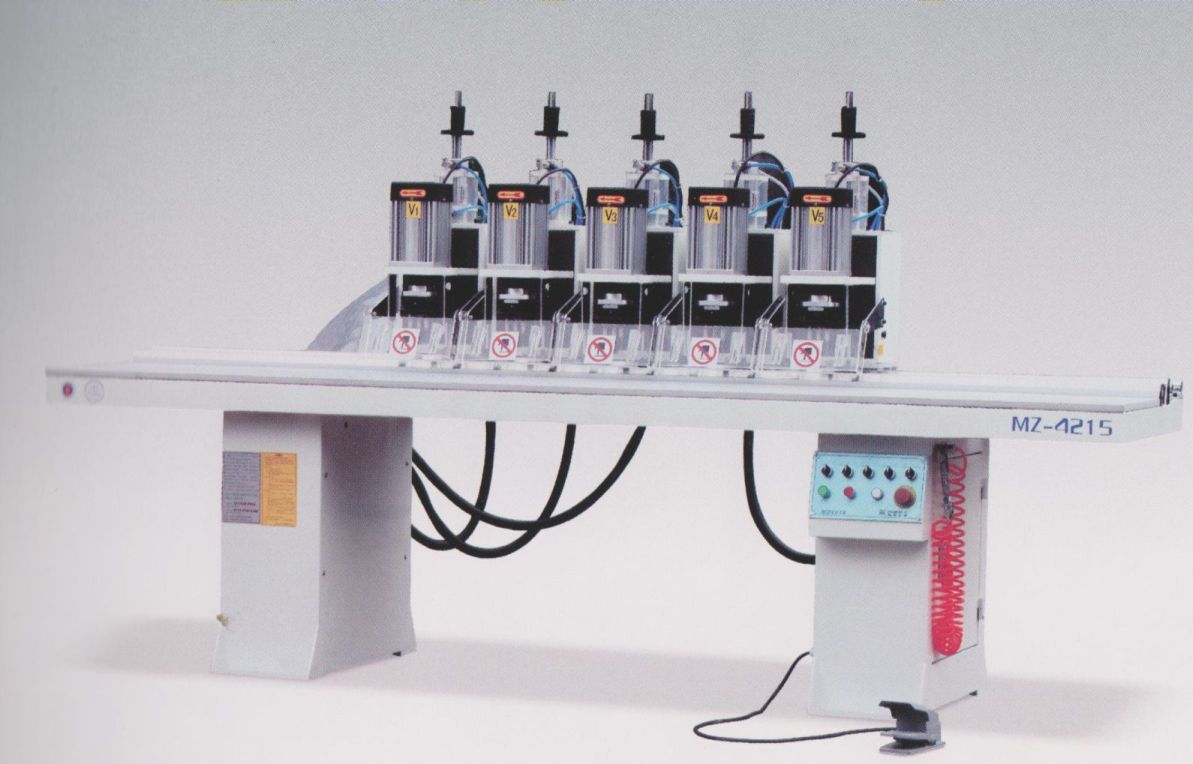

INTERWOOD MZ4215 Hinge Boring Machine

INTERWOOD MZ4215 Hinge Boring Machine

INTERWOOD MZ4215 Hinge Boring Machine

This machine can be made to ANY specification.

Drilling and boring machines are used for the production of holes to use with dowels to produce furniture, frames and other joinery components.

They can be a single tool or a cluster of drills that will drill either horizontally or vertically.

INTERWOOD MZ4215 Hinge Boring Machine Technical Information

  • Max Bore Dia.  35mm
  • Max Drilling depth 50mm
  • Max Processing Pitch 2600mm
  • Min Processing Pitch 300mm
  • Drill Spindle Quantity 5 x 3
  • Total Motor Power 5.5kw
  • Main Spindle Speed 2800rpm
  • Air Pressure 0.6-0.8 Mpa
  • Overall Dimensions 3000 x 780 x 1700mm
  • Weight 550kg

This machine can be made to ANY specification.

Max Bore Dia. 35mm
Max Drilling depth 50mm
Max Processing Pitch 2600mm
Min Processing Pitch 300mm
Drill Spindle Quantity 5 x 3
Total Motor Power 5.5kw
Main Spindle Speed 2800rpm
Air Pressure 0.6-0.8 Mpa
Overall Dimensions 3000 x 780 x 1700mm
Weight 550kg

Lease or Finance options are available on request.
